UHD1 new

Timeline Television designed and built the first purpose-built 4K UHD outside broadcast unit in Europe

UHD1 launched in August 2015 to service BT Sport’s 4K UHD channel and is available to hire for both sporting events and other production genres such as the arts, entertainment and natural history.

This cutting edge Outside Broadcast unit, built by Timeline’s System Integration division, is designed from the ground up to deliver 4K UHD programmes to the same high standard as HD programs for complex live or as live production.

Technology highlights:

• Worlds first Sony HDC- 4300 2/3 inch UHD 4K cameras
• Sony UHD 4K PWS-4400 server
• Worlds first Fujinon UHD 4k 2/3 inch 80:1 box and 22:1 ENG lenses
• Grass Valley Kahuna UHD 4K vision mixer and Sirius router
• Axon signal processing equipment & Axon Cerebrum control system
• EVS XT3 UHD 4K servers
• Grass Valley Kaleido-Modular-X multiviewers & Belden cable

Floor plan

Chassis

• Max footprint 12m x 6.8m x 4.1m
• Weight: 23 tonnes
• Voltage 230 – 415 3 Phase inlet
• Power: 63 Amp 3 phase C-Form

Vision System

• Wiring for 16x 4K camera channels
• Digital Glue Axon Synapse
• Video Matrix – Snell Sirius 840 Hybrid Router
• System Control – Axon Cerebrum
• Measurement equipment: Tektronix 8300
• Displays:
  • 1x Sony PVM-X300
  • 3x Sony PVM-A170

VT Area

• Server slots
• 6 x UHD XT3 (EVS)
• 1x Sony PWS-440

Audio

• 40 fader Calrec Artemis Console
• Calrec Hydra 2
• Dynaudio monitors
• 5.1 audio with Dolby encoding
• Yamaha SPX2000
• Spot On

Production Area

• Grass Valley 4K UHD vision mixer with format fusion inputs flexible 4ME
• Maverik Control Surface
• 1x Sony OVM-X300
• 1x 49″ Sony Bravia
• 17x 22″ 1080@50p
• Multiviewers Grass Valley KMX

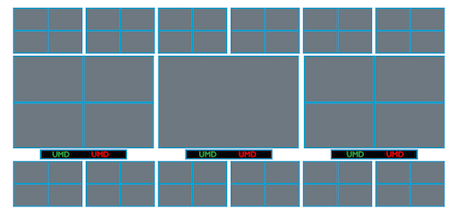

Production Monitor Stack

Graphics

Facilities for 2x 4K GFX machines and operators

Cameras

12x 4300 Sony cameras as standard

Lenses

6x Fujinon UA22x8BERD 22:1 lens with controls
6x Fujinon UA80x9BERD 80:1 lens with controls

Download Data Sheet
